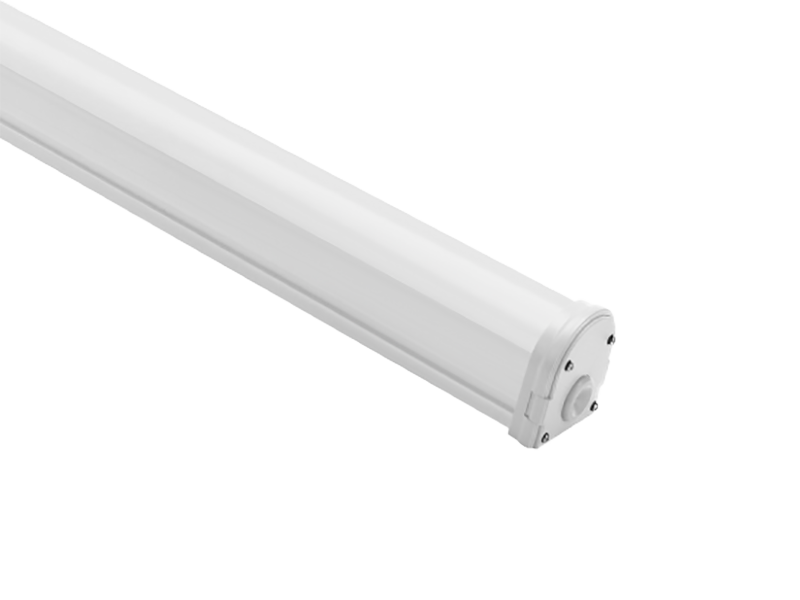

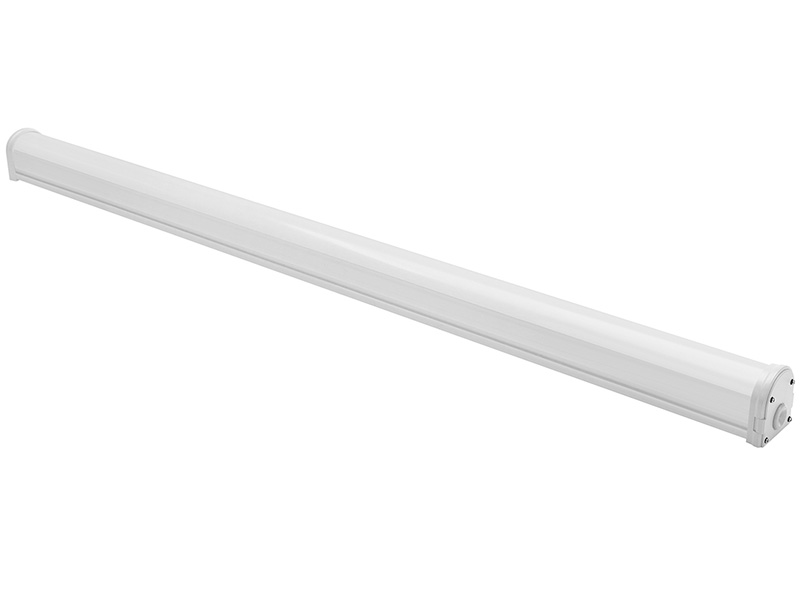

GH-F IP65 Led extrusion Triproof light

Feature:

1. Bicolourable extrusion process, PC end cap, PC with light diffusion agent body.
2. End cap uses heat-induced wire welding,to fasten sealing and waterproof effect.
3. Using non-isolated driver,high light efficiency LED chips,luminous flux to 110LM/W.
4. It is easy for outside wiring.
5. Waterproof rate IP65.

Application:

Warehouse, Metro , Garage, Tunnel Corrdor, Store, Supermarket.etc.

E-mail: export@ghlux.com

Make an inquiry

Product Description

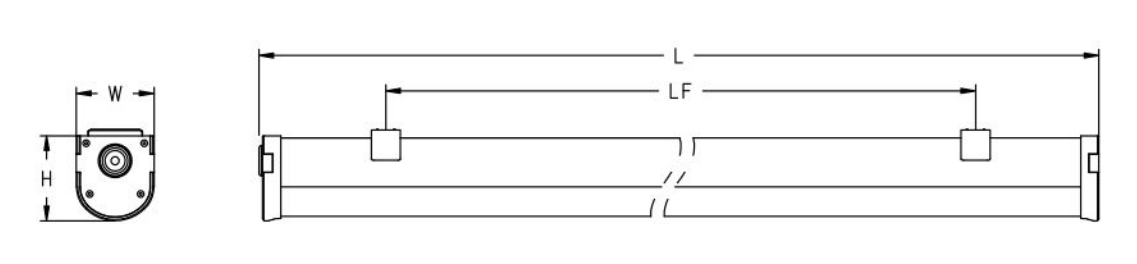

Model	L（mm）	W（mm）	H（mm）	LF（mm）
GH106F	550	56	70
GH112F	1150	56	70
GH115F	1450	56	70

Code

Input Voltage

Output power

LED

CCT

CRI

LED quantity

Luminous flux

IP Rating

Dimensions mm

Line

Rating

GH106F

220-240V 50/60HZ

1 PCB

20W

2835

3000K-6500K

≥80

2400lm

550

GH112F

220-240V 50/60HZ

1 PCB

40W

2835

3000K-6500K

≥80

102

4800lm

1150

GH115F

220-240V 50/60HZ

1 PCB

50W

2835

3000K-6500K

≥80

153

6000lm

1450

1. Bicolourable extrusion process, PC end cap, PC with light diffusion agent body.

2. End cap uses heat-induced wire welding,to fasten sealing and waterproof effect.

3. Using non-isolated driver,high light efficiency LED chips,luminous flux to 110LM/W.

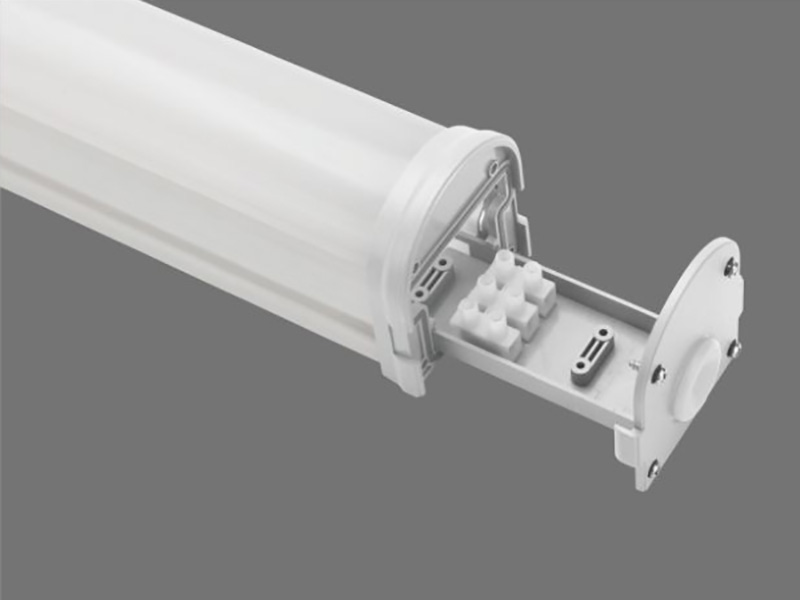

4. It is easy for outside wiring.

5. Waterproof rate IP65.

Application:Warehouse, Metro , Garage, Tunnel Corrdor, Store, Supermarket.etc.
