Workshop, Warehouse, Cold Store, Parking-lot,Food industry, Tunnel,Bathroom etc.
APPLICATION
Workshop, Warehouse, Cold Store, Parking-lot,Food industry, Tunnel,Bathroom etc.
E-mail: export@ghlux.com

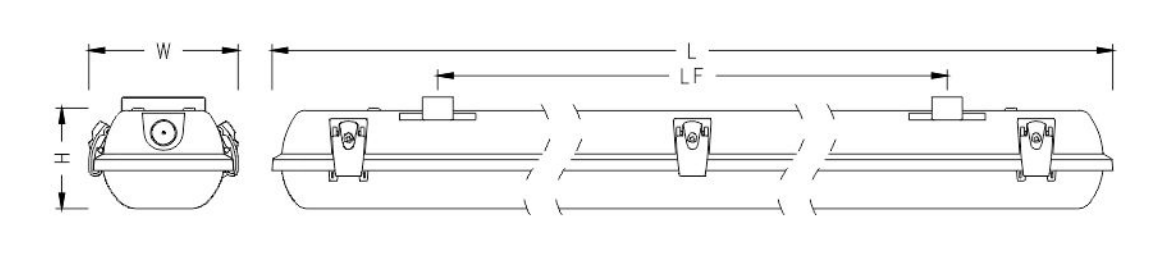

| Model | L(mm) | W(mm) | H(mm) | LF(mm) |
| GH118A | 660 | 82 | 79 | 400 |
| GH136A | 1260 | 82 | 79 | 900 |
| GH158A | 1560 | 82 | 79 | 1200 |
| GH218A | 660 | 117 | 79 | 400 |
| GH236A | 1260 | 117 | 79 | 900 |
| GH258A | 1560 | 117 | 79 | 1200 |
| Code | Input Voltage | Output power | LED | CCT | CRI | LED quantity | Luminous flux | IP Rating | Dimensions mm | ||||
| Line | L | W | H | LF | |||||||||
| GH118A | 220-240V 50/60HZ | 10W | 1 PCB | 2835 | 3000K-6500K | ≥80 | 24 | 1200lm | 65 | 660 | 82 | 79 | 400 |
| GH218A | 220-240V 50/60HZ | 19W | 2 PCB | 2835 | 3000K-6500K | ≥80 | 48 | 2300lm | 65 | 660 | 117 | 79 | 400 |
| GH136A | 220-240V 50/60HZ | 19W | 1 PCB | 2835 | 3000K-6500K | ≥80 | 48 | 2300lm | 65 | 1260 | 82 | 79 | 900 |
| GH236A | 220-240V 50/60HZ | 38W | 2 PCB | 2835 | 3000K-6500K | ≥80 | 96 | 4600lm | 65 | 1260 | 117 | 79 | 900 |
| GH158A | 220-240V 50/60HZ | 29W | 1 PCB | 2835 | 3000K-6500K | ≥80 | 72 | 3500lm | 65 | 1560 | 82 | 79 | 1200 |
| GH258A | 220-240V 50/60HZ | 57W | 2 PCB | 2835 | 3000K-6500K | ≥80 | 144 | 6800lm | 65 | 1560 | 117 | 79 | 1200 |
|
Product description |
|
|
Input Voltage/Frequency |
AC220-240V 50/60Hz |
|
Installation |
Easy and quick to install under ceiling or on surface |
|
Housing/Diffuser |
PC material, could meet IK08 and 850℃ GWT requirement |
|
Driver |
PHILIPS CERTA/ Tridonic SNC2 |
|
LED Brand |
SMD2835 |
|
CRI |
>80 |
|
Light Efficiency |
130lm/W for option |
|
Power Factor |
PF>0.95 |
|
Warranty |
5 years |
|
Operating Temp Range |
-20℃~50℃ |
|
Certificated |
ROHS/ CE/ CB/ SAA/ |
In Zhangqi town , Cixi, China, bordering east and famous Beilun port, west to the world’s longest Hangzhou Bay Bridge, is connected with the sea and air transportation is convenient. Ningbo Fenghua Lamp Co.,Ltd is professional GH-A IP65 Led Triproof light 6 size manufacturers and GH-A IP65 Led Triproof light 6 size suppliers in China. FengHua lighting have owned R&D team, complete production line and strict quality control system and sales team. For customer’s requirements, company is certificated by ISO9001 and ISO14001. All of our products have been approved by CE, CB ,SAA, etc. Company adhering to the“dedicated, win-win beyond” as operation policy, hope to go green and environmental lighting in future is our goals, Fenghua, Light your life.
